Yamaha PSR-E473

Name: Yamaha PSR-E473
Brand: Yamaha PSR-E473
SKU: yamaha-psr-e473
Price: 319 GBP
Availability: InStock
Rating: 1 (0 reviews)

61-key Touch-Sensitive Keyboard with 820 Voices, 290 Backing Styles & Much More!

New

£319.00

In Stock

Buy Online

Qty:

Buy Mail Order

Call our Barnstaple Shop on
01271 323686

Buy Instore

Visit us in our Barnstaple Shop.
Please call to check shop availability before travelling:
01271 323686

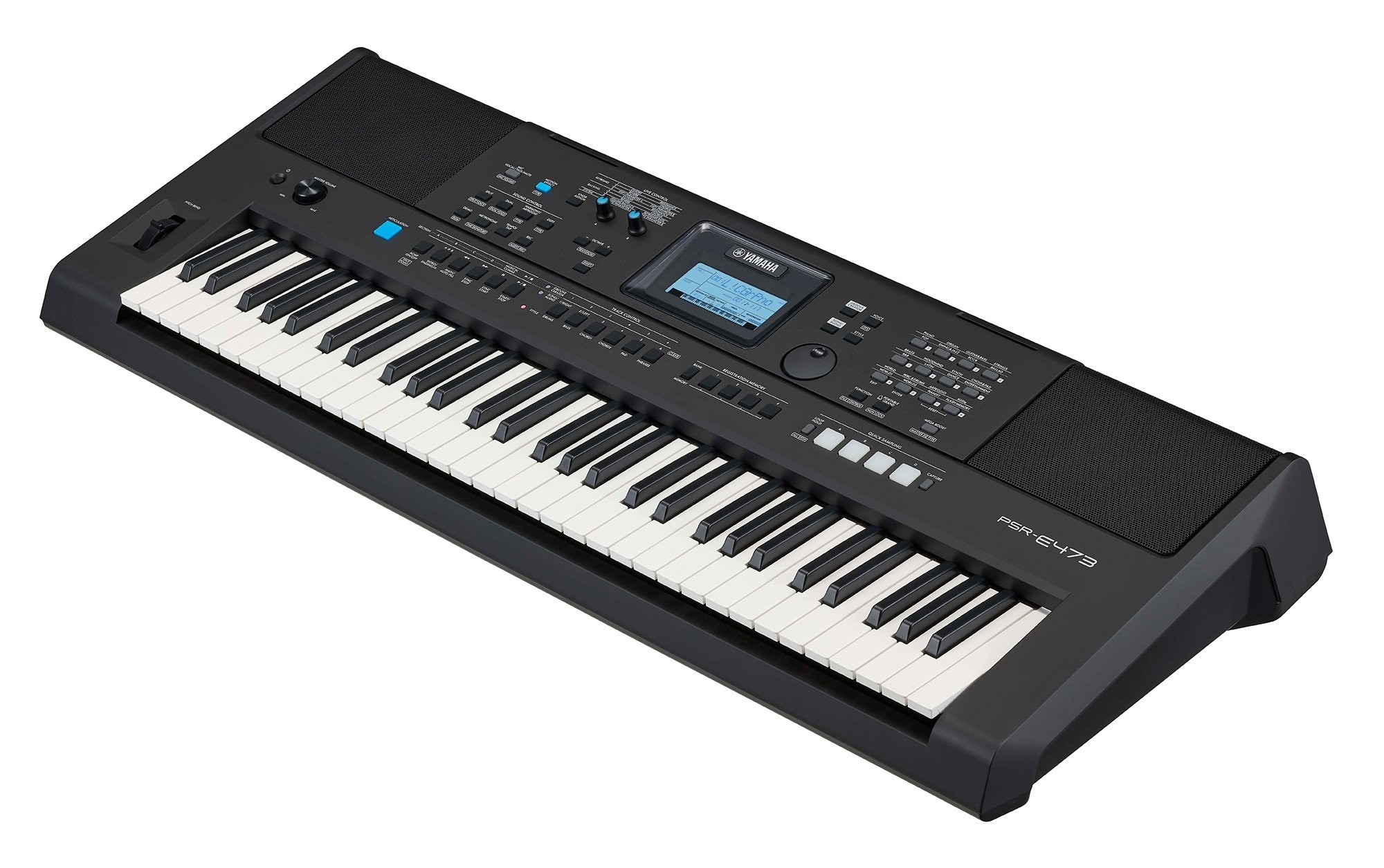

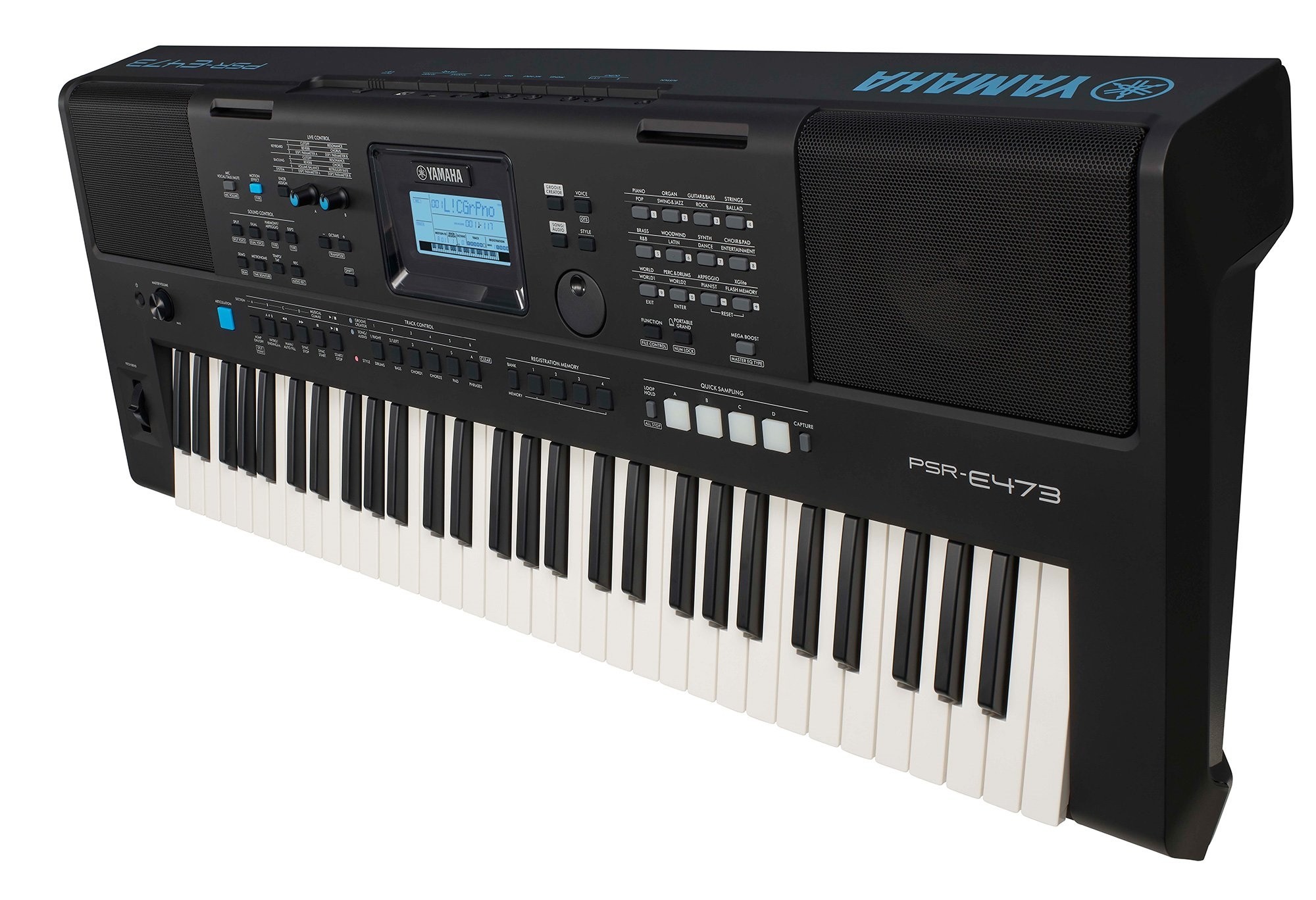

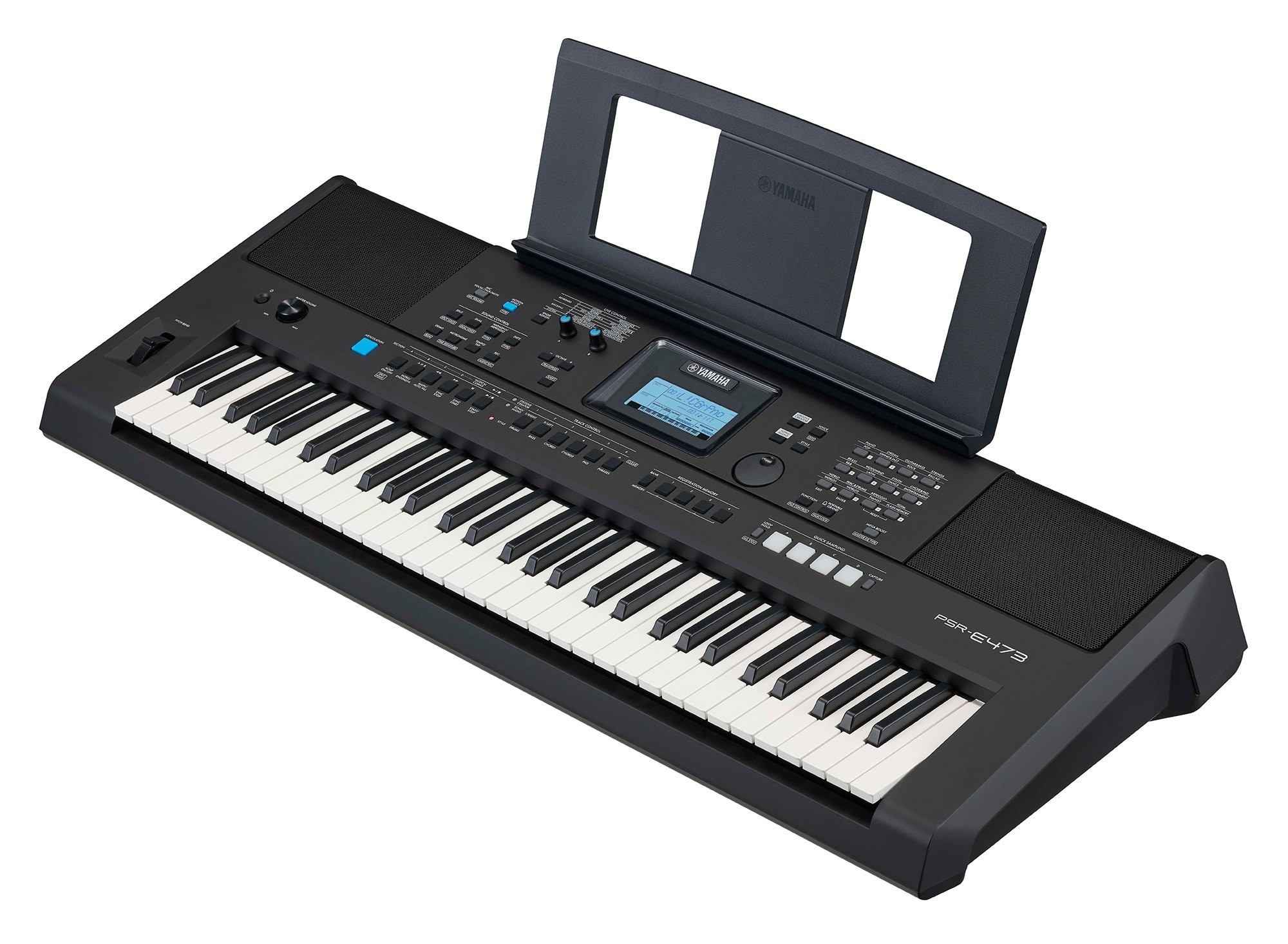

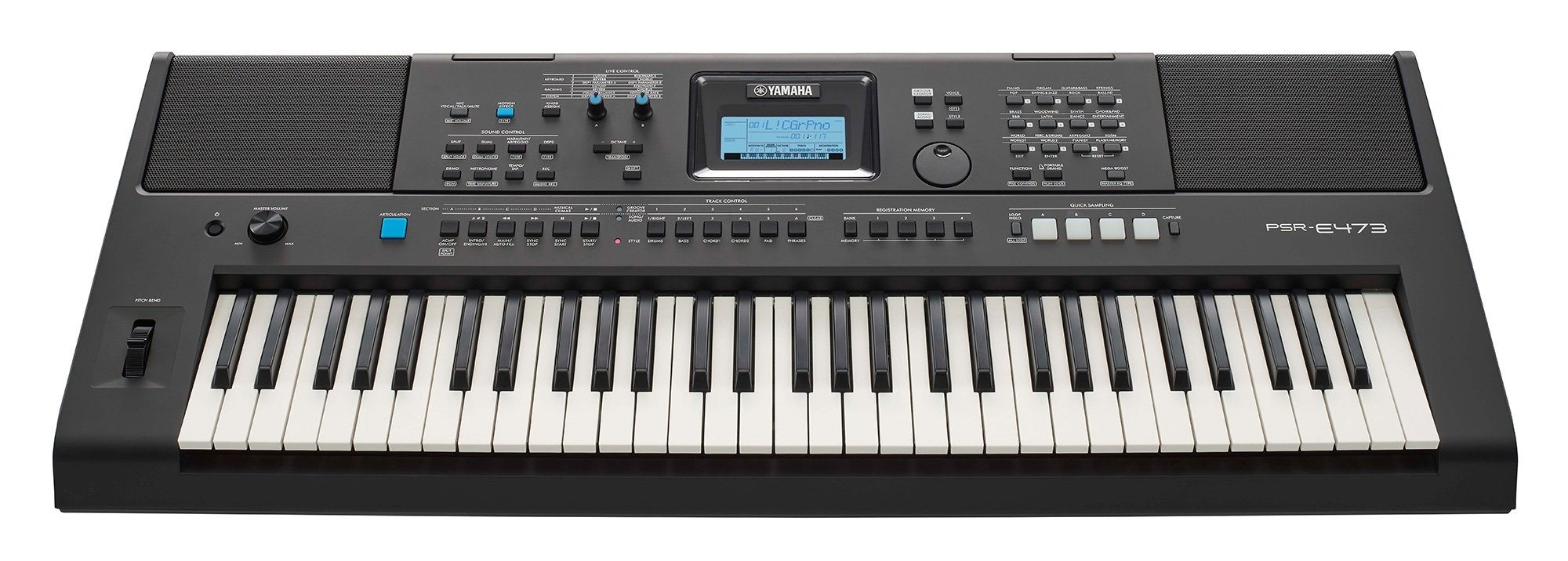

Click on a photo to view in high resolution

The PSR-E400 series is an excellent all-round 61-key keyboard that is ideal as a starter instrument but also represents a robust alternative for experienced players. The latest PSR-E473 features a newly developed tone generator that delivers stunning improvements in sound quality as well as high quality effects such as delays.

820 Voices and Super Articulation Lite Voices
290 Styles
2 channels/41 types of DSP insertion effects
Quick Sampling
Groove Creator
Live Control Knobs, Motion Effect functionality, pitch bend wheel
Mega Boost
Direct Category Access buttons
USB Audio Recording/Interface
Mic input and vocal effects
Individual L/R outputs

Sound like a pro!

The PSR-E473 delivers the same pro-quality sound found in high-end models. They’re loaded with augmented effects and a wide range of Styles—from the latest hits to genres from around the world.

Express yourself

Yamaha revamped the control panel and LCD, phased out the numeric keypad, added Direct Category Access buttons.

The optimized control panel makes it quick and easy to access Voices, Styles and functions so that you can focus your time on being creative.

With dedicated buttons, Quick Sampling, and innovative Motion Effect functionality, you can intuitively express the sounds you're hearing in your head.

Connect and share

A variety of connectivity options provide all the support you need for practicing, playing, and performing. Plug in a microphone to try your hand at singing while playing, use the Rec'n'Share app to share your music with the world, and hook into PA systems to perform on stage.

Specification

		PSR-E473
Color/Finish
Body	Color	Black
Size/Weight
Dimensions	Width	992 mm (39-1/16”)
	Height	136 mm (5-3/8”)
	Depth	404 mm (15-7/8”)
Weight	Weight	7.0 kg (15 lb, 7 oz) (not including batteries)
Control Interface
Keyboard	Number of Keys	61
	Touch Response	Yes (Soft, Medium, Hard, Fixed)
	Type	Organ-style
Other Controllers	Pitch Bend	Yes
	Art. Switches	Yes
	Control Knobs	2
Display	Type	LCD
Display	Backlight	Yes
Panel	Language	English
Voices
Tone Generation	Tone Generating Technology	AWM Stereo Sampling
Polyphony	Number of Polyphony (Max.)	64
Preset	Number of Voices	820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
Preset	Featured Voices	3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices
Compatibility	GM	Yes
Compatibility	XGlite	Yes
Effects
Types	DSP	DSP1: 41 types, DSP2: 12 types
	Reverb	12 types
	Chorus	5 types
	Master EQ	4 types
Functions	Dual/Layers	Yes
	Split	Yes
	Melody Suppressor	Yes (w/ pan adjustment)
	Crossfade	Yes (between Internal Sound and External Audio)
Accompaniment Styles
Preset	Number of Preset Styles	290
	Fingering	Multi finger, Smart Chord
	Style Control	ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
Other Features	One Touch Setting (OTS)	Yes
Expandability	Expansion Style	10
Compatibility		Style File Format (SFF)
Groove Creator
Preset	Number of Groove	35
Preset	Number of Sections	5 (4 Sections + 1 Musical Climax/Ending)
Songs
Preset	Number of Preset Songs	30
Recording	Number of Songs	10
	Number of Tracks	6 (5 Melody + 1 Style/Groove Creator)
	Data Capacity	Approx. 19,000 notes (when only “melody” tracks are recorded)
Compatible Data Format	Playback	SMF (Formats 0 & 1)
Compatible Data Format	Recording	Original File Format (SMF 0 conversion function)
USB Audio Recorder
Recording Time (max.)		80 minutes (approx. 0.9 GB) per Song
Format	Playback	WAV (44.1 kHz, 16 bit, stereo)
Format	Recording	WAV (44.1 kHz, 16 bit, stereo)
Quick Sampling
Sampling Type		One-shot, Loop
Samples (Preset/User)		4
Sampling Time		Approx. 9.6 sec
Sampling Sources		AUX IN, MIC INPUT, USB audio interface, WAV format files
Sampling Format		Original File Format (16 bit, stereo)
Sampling Rate		44.1 kHz
Functions
USB audio interface		44.1 kHz, 16 bit, stereo
Registration	Number of Buttons	4 (x 8 banks)
Registration	Control	Freeze
Overall Controls	Metronome	Yes
	Tempo Range	11 – 280
	Transpose	-12 to 0, 0 to +12
	Tuning	427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
	Octave Button	Yes
	Scale Type	5 types
Miscellaneous	PIANO Button	Yes (Portable Grand Button)
Miscellaneous	Other Functions	Mega Boost, Motion Effect (57 types)
Voices	Harmony/Echo	26 types
Voices	Arpeggio	152 types
Storage and Connectivity
Storage	Internal Memory	Approx. 1.72 MB
Storage	External Drives	USB flash drive
Connectivity	DC IN	12 V
	AUX IN	Stereo mini jack x 1
	Headphones	Standard stereo phone jack x 1
	Sustain Pedal	Yes
	USB TO DEVICE	Yes
	USB TO HOST	Yes
	OUTPUT	Standard phone jack x 2
	Microphone	Standard phone jack x 1
Amplifiers and Speakers
Amplifiers		6 W + 6 W
Speakers		12 cm x 2
Power Supply
Power Supply		AC Adaptor PA-150 or an equivalent recommended by Yamaha, or six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries
Power Consumption		9 W (When using PA-150 AC adaptor)
Auto Power Off Function		Off/5/10/15/30/60/120 (minutes)
Accessories
Included Accessories	Music Rest	Yes
Included Accessories	Song Book	Download from Yamaha web site
